Fluids, semi-solids, and powders stored in vented tanks or drums can become contaminated by moisture or other materials in the processing area. Using a reservoir breather can prevent this contamination.
Desitech reservoir breathers come prefilled with molecular sieve and a mix of orange indicating silica gel, which turns green when saturated. They are equipped with two-way relief valves that stay closed until a pressure difference occurs, significantly extending the lifespan of the desiccant.
Type | Thread | Dimensions | Weight (g) | Water Adsorption (g) | Air Filter Elements | |||||
---|---|---|---|---|---|---|---|---|---|---|
OD | L1 | L2 | Total | Desiccant | Filter | Micron Rating | Max Air Flow Rate | |||
DTDV-2 | Male 3/4" BSP | 95 | 235 | 20 | 1300 | 365 | 138 | Synthetic Fibre | 3 Micron | 752L/m |
DTDV-3 | Male 1-1/4" BSP | 135 | 230 | >25 | 2700 | 665 | 252 | Synthetic Fibre | 3 Micron | 1500L/m |

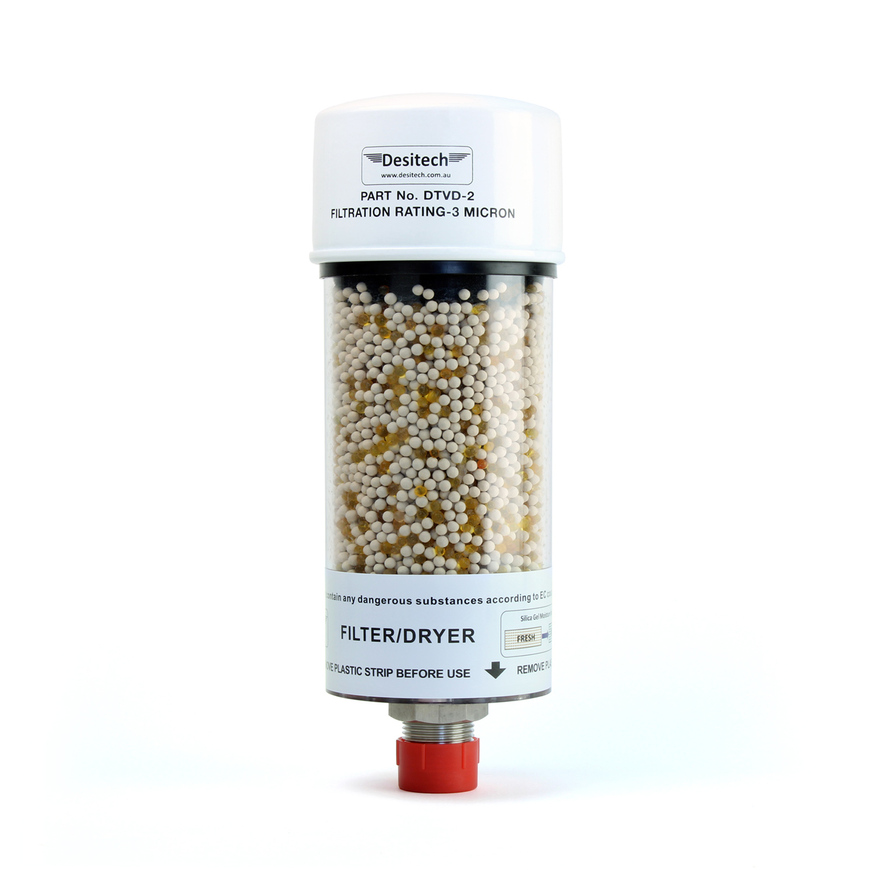

SKU | DTDV-2 |
Brand | Desitech |
Desiccant | Molecular Sieve & Indicating Silica Gel |
Dimensions | Refer to diagram in images (OD: 95; L1: 235; L2: 20) |
Net Weight | 1.3kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Shipping Cubic | 0.024000000m3 |
Weight of Desiccant | 365gm |
Water Adsorption | 138gm |
Filter | Synthetic Fibre |
Micron Rating | 3 Micron |
Max Air Flow Rate | 752L/m |
Thread | Male 3/4” BSP |
